CompuPool Replacement Salt Cell Electrode for CPSC24 | 5-Blade for up to 26,000 Gallons | JD363130C

CompuPool Replacement Salt Cell Electrode for CPSC24 | 5-Blade for up to 26,000 Gallons | JD363130C CompuPool Replacement Salt Cell Electrode for CPSC24 | 5-Blade for up to 26,000 Gallons | JD363130C
$330.49

Quantity:
Parts AvailableParts Available
Gold Preferred Manufacturer
  • Suitable for pools up to 30,000 gallons
  • For use with CPSC24 chlorination system only
  • Produces 1.3 pounds of chlorine per day
  • Clear blue housing not included
  • Unions, O-ring and cord not included
  • Click Here  for Complete Cell with Housing

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

CompuPool Salt Chlorine Generator for Inground Pools up to 26,000 Gallons | CPSC24
CompuPool CPSC24 Salt Generator Complete - 26,000 Gallons | CPSC24
Replacement Parts

RELATED ITEMS
  • CompuPool Clear Electrode Housing Body for CPSC Series | JD363102Z
    CompuPool Clear Electrode Housing Body | JD363102Z

    $97.31
  • CompuPool Cell Cable Plug & 15 foot Cord for CPSC Series | JD363200B
    CompuPool Cell Cable Plug & 15 foot Cord for CPSC Series | JD363200B

    $97.56
  • CompuPool Cell Cable Plug & 6 foot Cord for CPSC Series | JD363200A
    CompuPool Cell Cable Plug & 6 foot Cord for CPSC Series | JD363200A

    $72.82
  • AquaChek Salt System Test Kit | 542228A
    AquaChek Salt System Test Kit

    $24.23

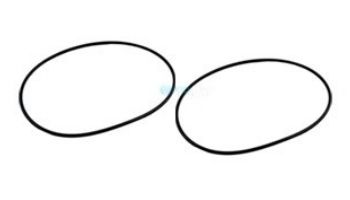

  • CompuPool CPSC O-Ring Kit | JD363CPSC-O-KIT
    CompuPool CPSC O-Ring Kit | JD363CPSC-O-KIT

    $12.50
  • CompuPool Salt Chlorine Generator 15 foot Cord for Inground Pools up to 26,000 Gallons | CPSC24-15
    CompuPool CPSC24 15 foot cord for pools up to 26,000 Gallons | CPSC24-15

    $529.51
OVERVIEW

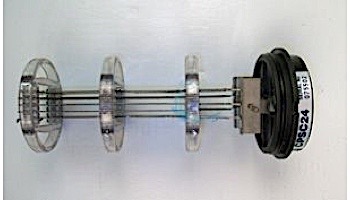

The CompuPool CPSC24 replacement salt cell electrode is for use with the CPSC24 chlorination system. The unit housing, unions and O-rings are not included with the cell, and we always recommend adding a new cord (see Other Purchase Options) when replacing the cell or electrode.

The CPSC24 electrode uses five titanium blades to produce 1.3 pounds of chlorine per day for pools up to 30,000 gallons in volume. The level of salinity can be easily maintained at the power center, making for a pleasing swimming experience as smooth, silky water provides a welcome contrast to the often overly chlorinated, irritating pool and spa water of years past. Periodic cleaning of the cell can also be performed with a simple mixture of water and muriatic acid.

CompuPool makes it possible to save by ordering just this replacement electrode for the CPSC24 without the blue housing if the existing housing is intact. It is possible, however, to order the full CPSC24 cell, housing included, by clicking the link above.

CPSC cells, electrode-only models and full systems are popular for a number of other reasons as well:

  • Default salt level setting of 3500 parts per million, which can be easily adjusted
  • Automatic operation plus battery-powered backup timer for consistent schedule
  • Automatic detection when water’s salt level is too high
  • Intuitive touch pad controls for easy setting of desired levels
  • No-flow sensor, plus high-salt and low-salt fault lights
  • Water temperature sensor to help make salt level reading more accurate
  • Large alloy heat sink to help dissipate heat and prevent corrosion
  • Entire system fully weather protected
  • Winter mode to compensate for colder water being chlorinated
  • Waterproof connectors make installing replacement cells simple

CompuPool has discontinued production of its CPSC line of complete salt systems in favor of the newer CPX models. However, it still manufactures replacement cells and electrodes for the CPSC system and we’re happy to offer them. CompuPool has been a leader in saltwater chlorination for more than three decades and we’ve received consistently high reviews from customers regarding those systems as well as replacement cells.



SPECIFICATIONS
Pool Size
26,000 Gal
System Compatibility
CompuPool
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 5 questions Browse 5 questions and 7 answers
I have the cpsc 16 (4 blade). Can I buy the replacement cell for the 24 (5 blade)? Will it be compatible with my 16 system?
A shopper on Jun 5, 2016
BEST ANSWER: my 16 was set for 110v. I tried the 24 & it worked great. No adjustments were necessary, I just inserted it in. No I am not an electrician. make sure you turn it down once you find out how much more chlorine you are making.
CPSC24 control panel reads "low salt" and "water fault," but salt level is fine. Bad cell? Cell about 8 years old.
A shopper on May 25, 2017
BEST ANSWER: My experience is that the readout is due to a bad cell. Great that it lasted 8 years, though. I had replaced several times, but the replacements only last about 18 to 24 months.
Is this a replacement for circupool rj45?
Bob W on Jul 5, 2017
BEST ANSWER: no
CPSC24 control panel reads "low salt" and "water fault," but salt level is fine. Bad cell? Cell about 8 years old.
Halton H on May 25, 2017
BEST ANSWER: I never had a salt cell last 8 years. Lucky you. There is a calibrate button on the control board inside the cover of the control panel. If you google this there is a how to video.
What needs to be done when monitor indicates "no cell"?
Gary H on Apr 26, 2017
BEST ANSWER: See if you have air in the cell. See if you have water flowing. Check the salt level in your pool. And last take it apart, look at the titanium electrodes & see if it is corroded where the stainless steel connection is spot welded to the titanium plates. If it looks bad replace the entire electrode.
REVIEWS
4.4 / 5.0
7 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
4
2
1
0
0
Rated 5 out of 5
Good service
Very good product and easy installation. Don’t have any problems at all after 1 year still working like the first day.
February 18, 2019
Purchased
over 4 years ago
Rated 5 out of 5
better than original
I went with the larger 24 on a hunch. What an improvement! It worked seamlessly with my smaller unit and kept up during the peak of the summer sun when I frequently fell short on chlorine production from my 15 electrode.
February 26, 2019
Purchased
over 5 years ago
Rated 5 out of 5
Knowledgeable service technician!
I thought my cell was bad but it had a high salt reading and wouldn't release chlorine. After talking to Jason he advised me it was my LED board and needs to be calibrated. He told me how to do it but mine was older and didn't have the SW1 button. He sent me a replacement, I changed it out, and it has been working great ever since. Best advice I have received for the 6 years I have owned a salt water pool! Thanks again, Jerry Lyons
August 23, 2016
Purchased
over 5 years ago
Rated 5 out of 5
Works
It seems to work even though the plastic supports are square rather than round like the original. It fit into the cell chamber and I am back to swimming.
July 2, 2017
Purchased
over 4 years ago
Rated 4 out of 5
CompuPool OEM Salt Replacement Electrode
Exactly what we expected. Good buying experience - good price.
July 10, 2013
Rated 4 out of 5
Very satisfied with the product and service.
This is my third unit in about 12 years, the original unit didn't seem to have the ability to self clean. This newest unit does a much better job of self cleaning, have only had to clean it once in an 8 month period, and then it wasn't really very corroded like the previous units would get.
February 25, 2019
Purchased
over 4 years ago
Rated 3 out of 5
Fit perfectly.
Not %100 sure it is working yet.still up in the air as to whether it is worth the expense
June 28, 2019
Purchased
over 2 years ago
WARRANTY
CompuPool warranties its original and generic replacement salt cells for two years in most cases with some exceptions:
